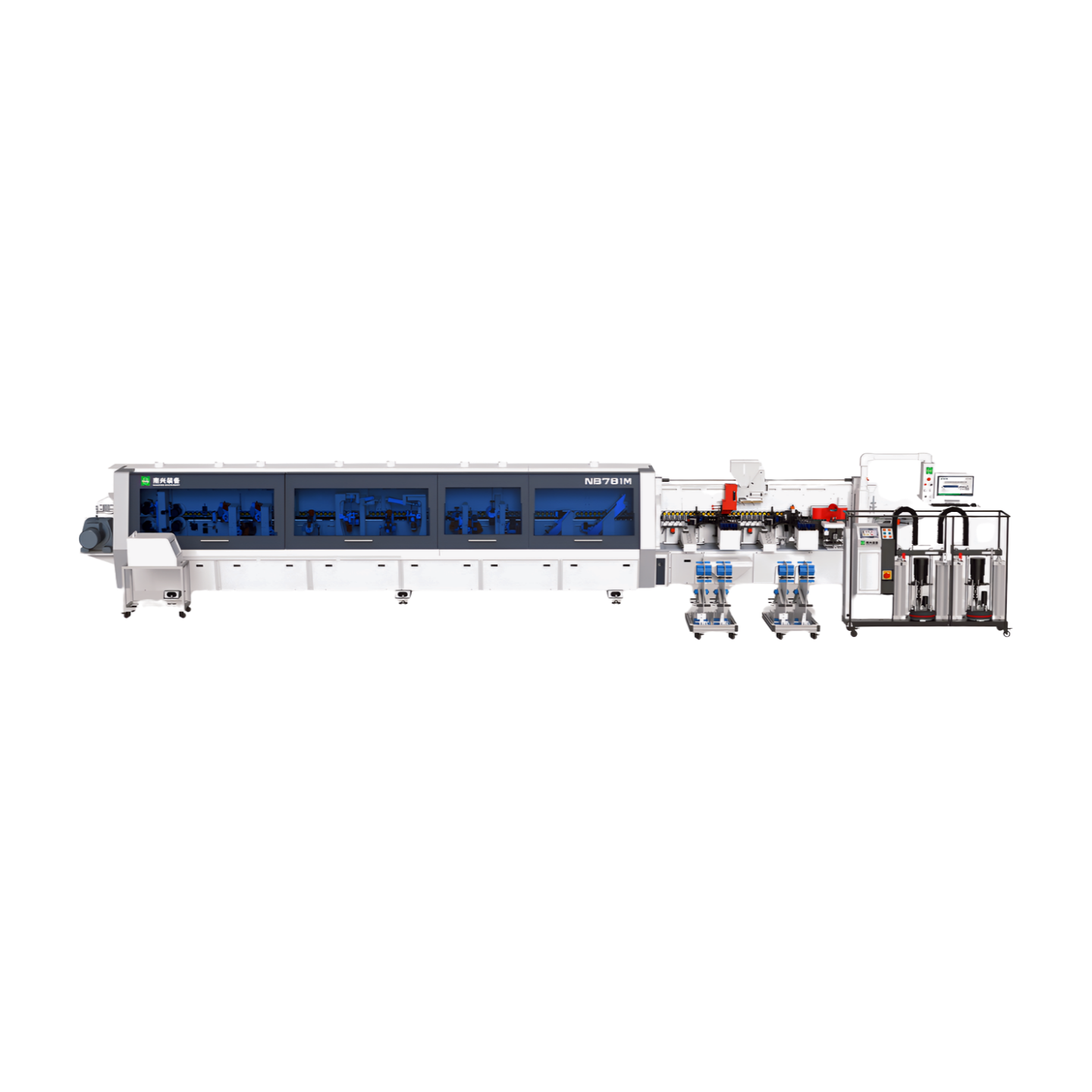

NB781M High-Speed PUR Edge Banding Machine
The NB781M is a high-speed, industrial-grade edge banding machine equipped with advanced PUR gluing technology and dual servo edge feeding. Designed for large-scale production lines, it delivers clean, durable, and high-precision edge finishes for demanding furniture and panel processing applications.
Key Features
-
Two-color No-Clean PUR Glue Pot System
Allows seamless switching between glue colors and ensures consistent adhesion with minimal maintenance, ideal for high-gloss and moisture-resistant surfaces. -

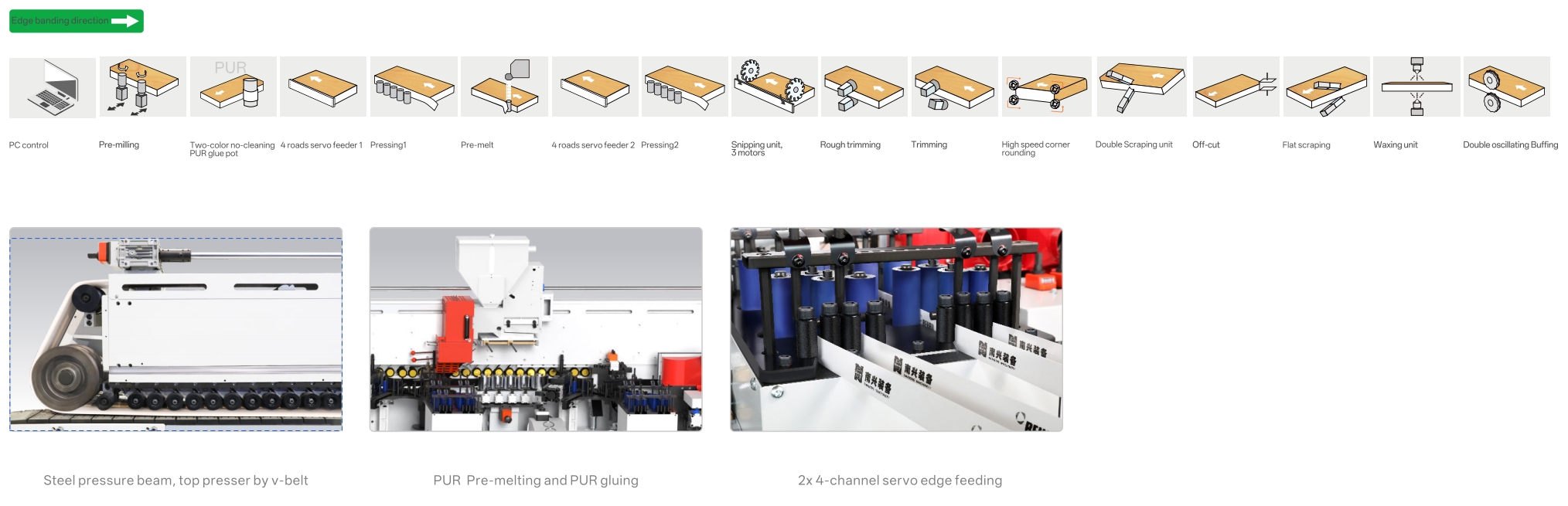

Comprehensive Edge Banding Process
Fully equipped with pre-milling, PUR gluing, dual-stage pre-melting, servo tape feeding, pressing units, 3-motor snipping, rough and fine trimming, high-speed corner rounding, off-cut, scraping, waxing, and dual buffing — all in one continuous workflow. -
2×4-Channel Servo Tape Feeders
High-precision and high-efficiency servo control ensures stable feeding for a variety of tape materials and dimensions. -

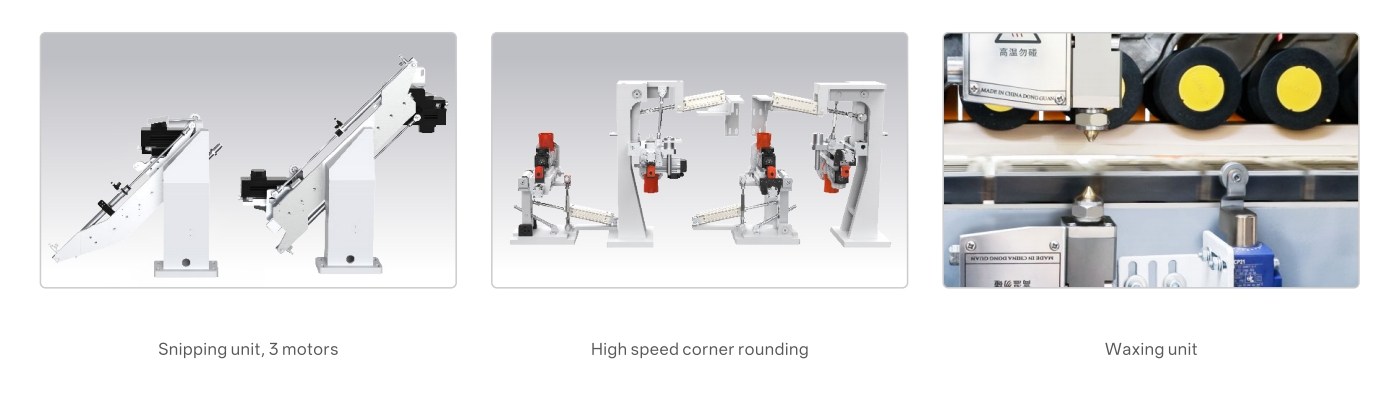

Snipping Unit with 3 Motors
Ensures clean and consistent cutting of edge tape ends, improving post-processing quality and reducing manual finishing. -
Waxing & Double Buffing Units
Enhances final edge polish and surface protection, providing a clean and professional finish. -
Steel Pressure Beam with V-Belt Top Presser
Delivers stable panel pressure and alignment during high-speed operations, ensuring smooth material flow.

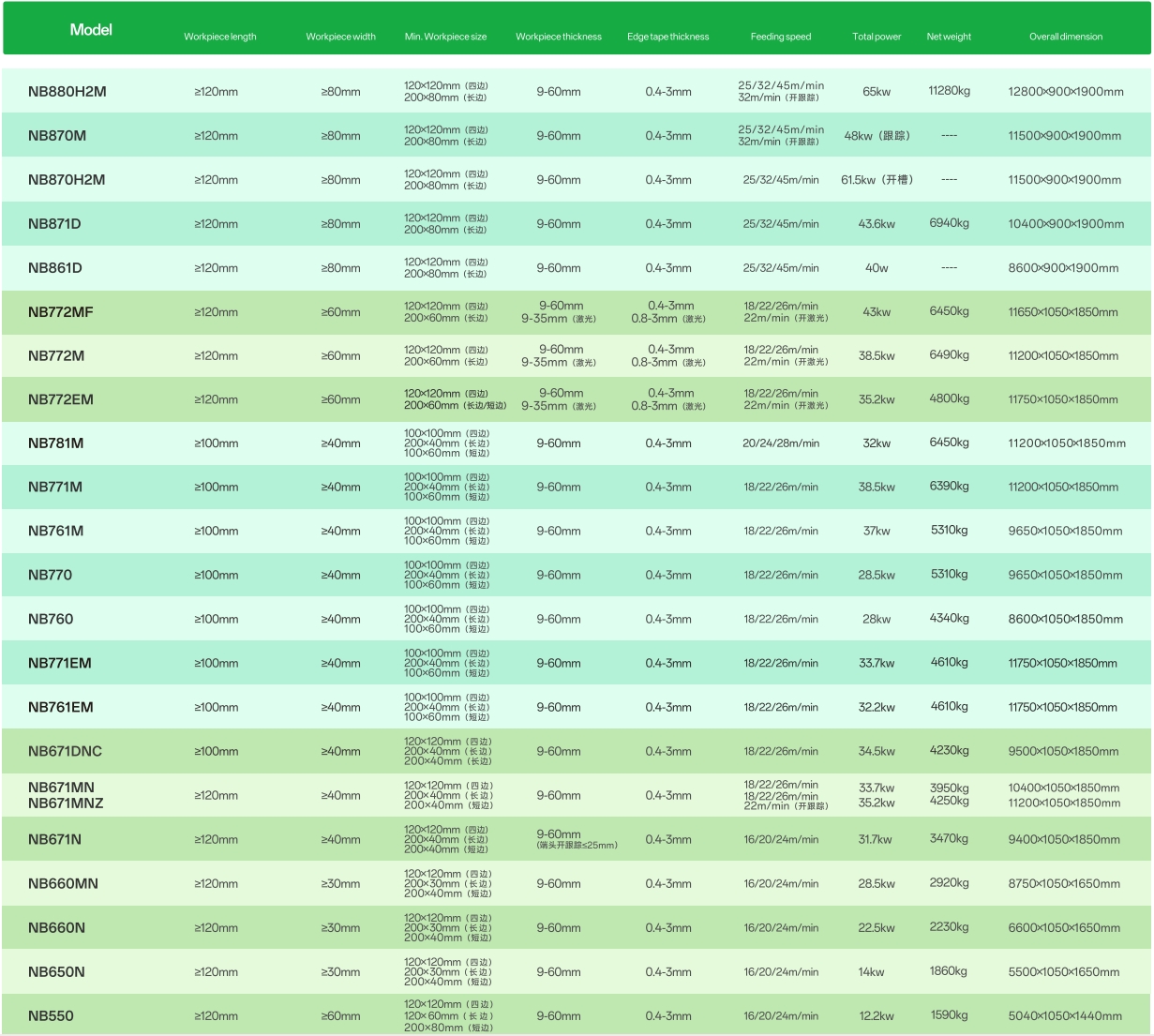

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NB781M |
| Workpiece Length | ≥100 mm |
| Workpiece Width | ≥40 mm |
| Workpiece Thickness | 9–60 mm |
| Edge Tape Thickness | 0.4–3 mm |
| Min. Workpiece Size | 100×40 mm (with support plate: 200×80 mm) |
| Feeding Speed | 24/28 m/min |
| Total Power | 32 kW |
| Net Weight | 6450 kg |
| Overall Dimension | 11200×1050×1850 mm |
Applications
The NB781M is ideal for large furniture factories and panel producers requiring high-speed throughput, consistent quality, and PUR-level bonding performance. Suitable for edge banding on cabinets, doors, bathroom furniture, and kitchen panels using PVC, ABS, melamine, and other edge tapes.
