NPT280 High-Speed Computerized Panel Dividing Saw
Application: Cutting and nesting of panel materials such as plywood, MDF, particleboard, etc.
Key Features
-

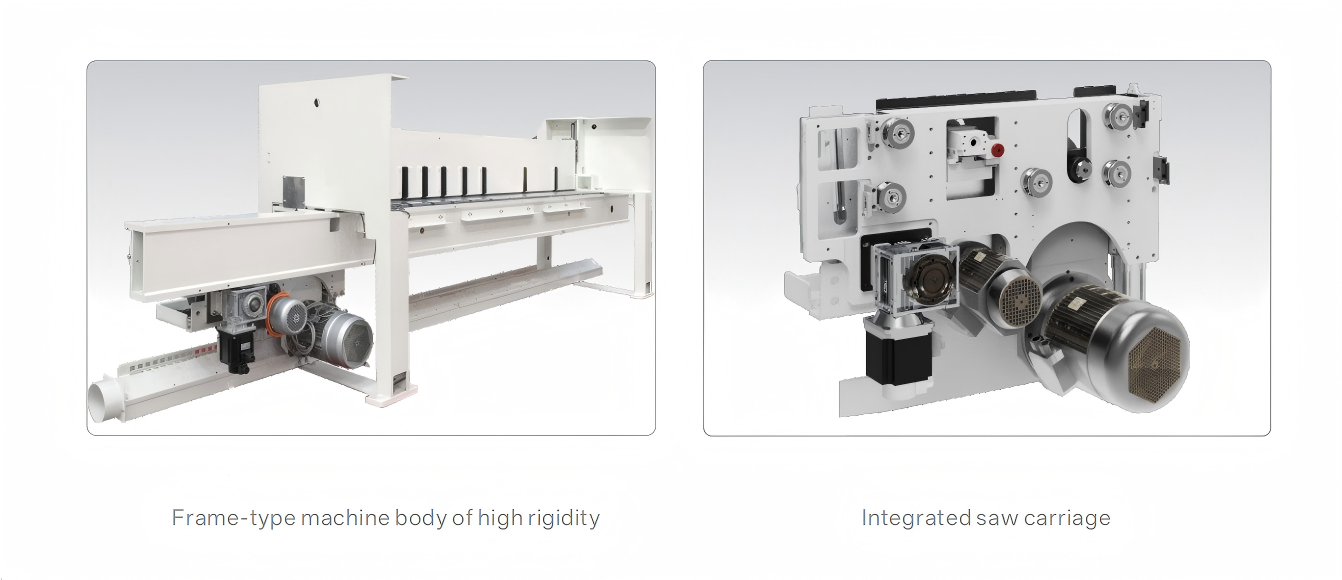

Heavy-Duty Frame Construction
The NPT280 adopts a robust frame-type structure that ensures rigidity, stability, and vibration resistance even under high-speed operations. This structural advantage extends the machine’s service life and enhances cutting precision. -
Integrated Aluminum Saw Carriage
Featuring a fully enclosed aluminum alloy saw carriage, the machine ensures smooth motion and stable performance. The design minimizes deflection and ensures clean, chip-free cuts even at high speed. -
High Efficiency & Cutting Speed
The NPT280 delivers exceptional productivity with a main saw carriage speed of 90–120 m/min and a feeding speed of 6–30 m/min. Its intelligent servo feeding system ensures continuous, stable cutting with reduced material waste.

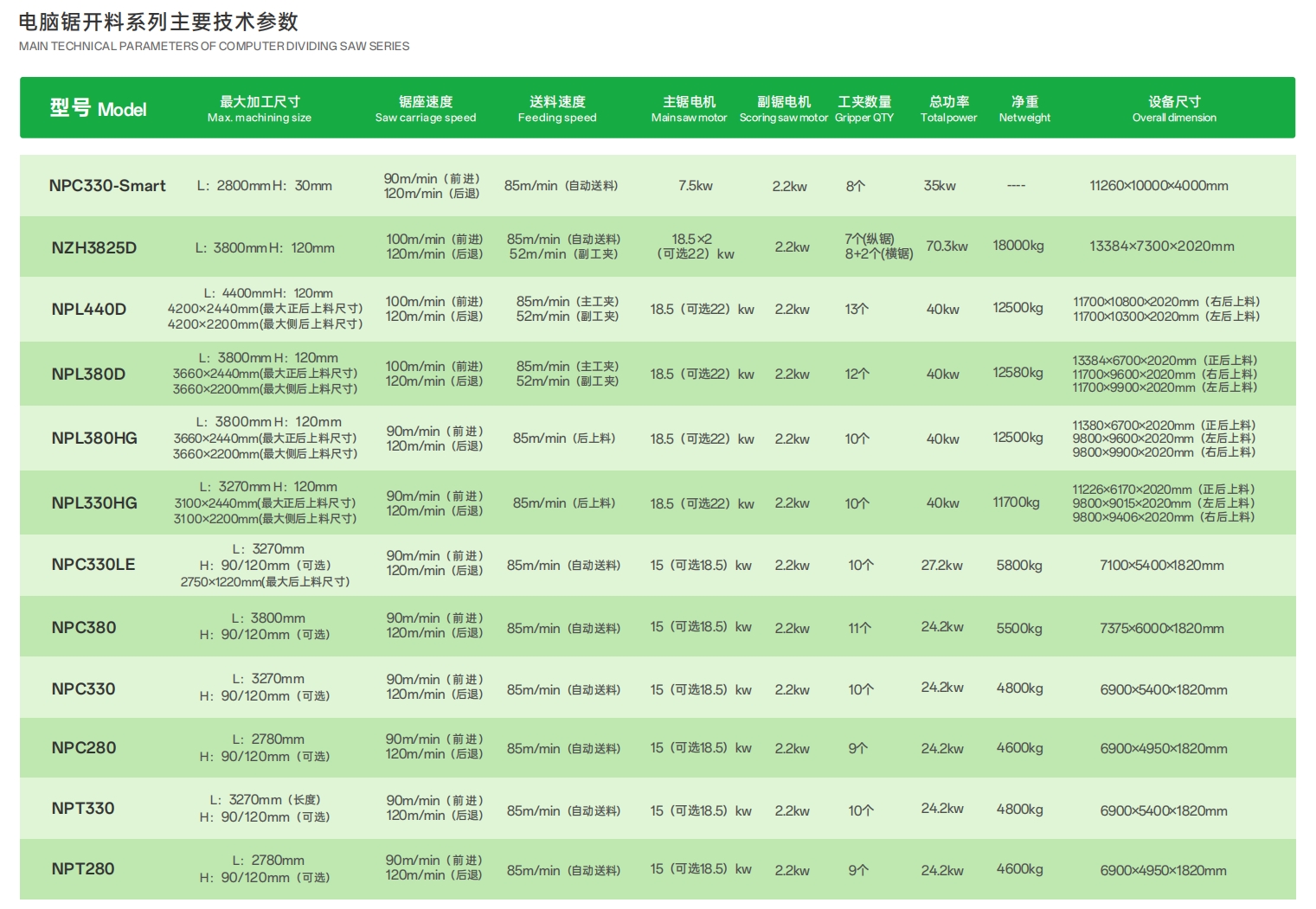

Technical Specifications
| Item | Value |
|---|---|
| Max. Cutting Length | 2780 mm |
| Max. Cutting Thickness | 120 mm |
| Main Saw Motor Power | 15 kW |
| Scoring Saw Motor Power | 2.2 kW |
| Feeding Speed | 6–30 m/min |
| Saw Carriage Speed | 90–120 m/min |
| Total Power | 24.2 kW |
| Machine Weight | 4600 kg |
| Dimensions (L×W×H) | 6900×4950×1820 mm |
