| Model | Tenon Structure | Key Features | Ideal Application |
|---|---|---|---|
| QMX1225GM | Symmetrical (Same on both ends) | Standard double-end tenoning – forms identical tenons on left and right ends | Traditional furniture, cabinet frames |
| QMX1225GMK | Asymmetrical (Male left / Female right) | Specialized for Three-Spine Buckle – left side for male tenon, right side for female tenon | Engineered wood flooring, locking furniture systems |
Product Details
Related Cases

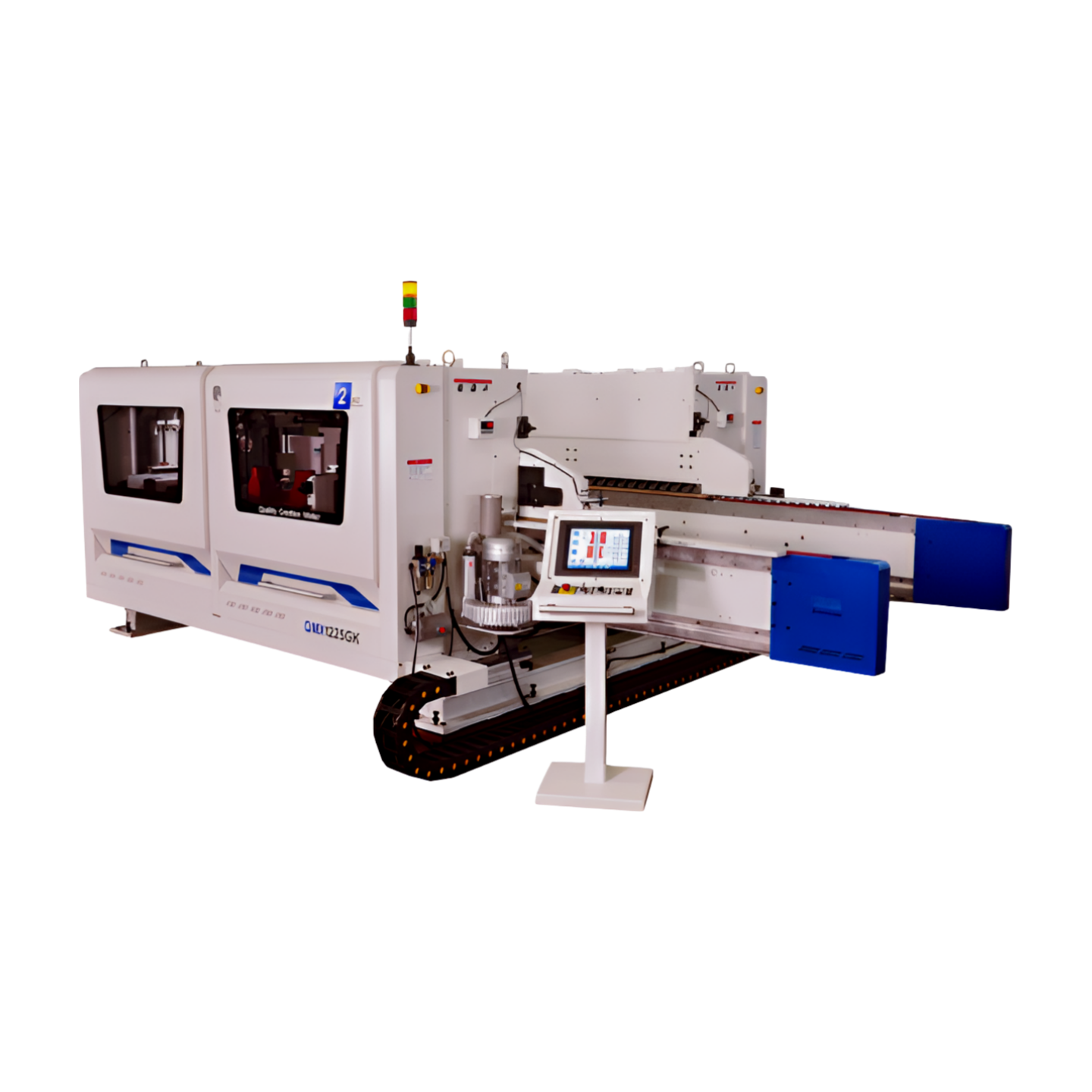

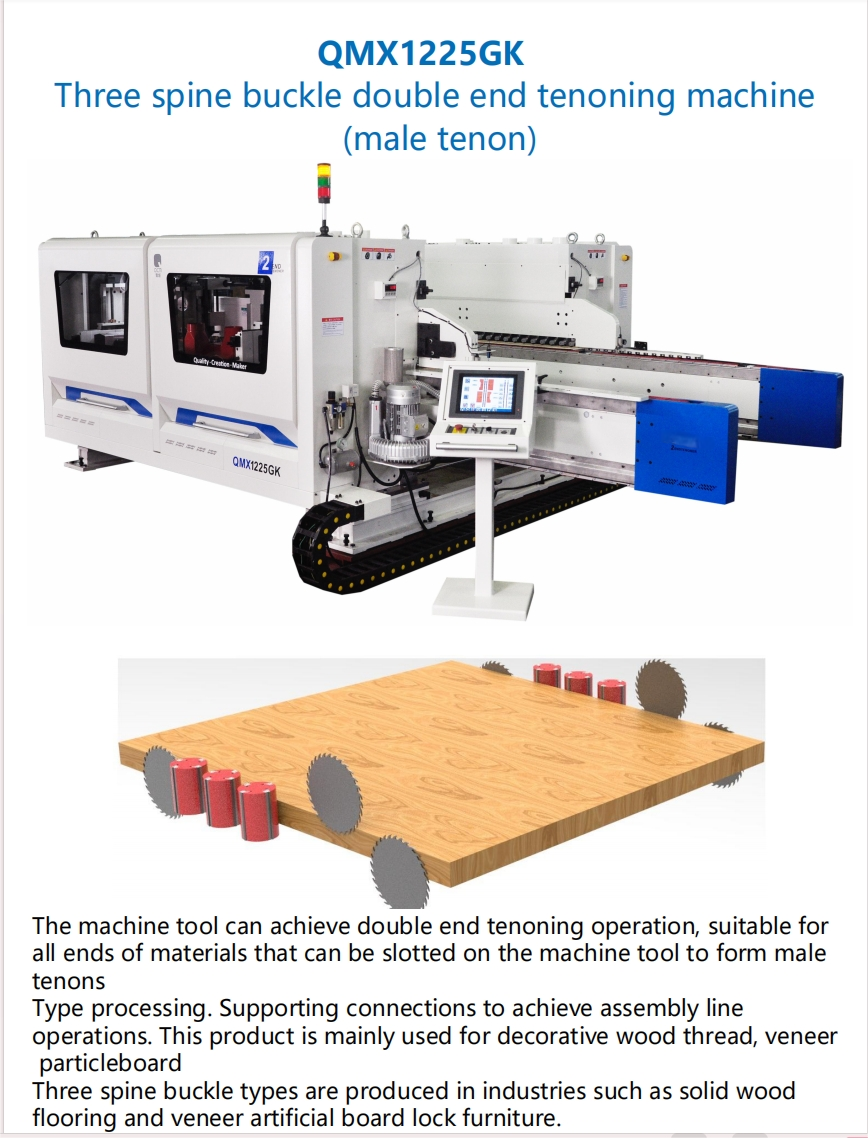

QMX1225GK Three-Spine Buckle Double-End Tenoning Machine (Male Tenon)
Overview:
The QMX1225GK is a high-performance CNC double-end tenoning machine designed specifically for producing male tenons in Three-Spine buckle panels. It is ideal for mass production in flooring and furniture industries requiring efficient, accurate, and consistent male-slotting operations. The machine supports automated processing and seamless integration into assembly lines.
QMX1225GMK – What Makes It Unique?
-
Left-right asymmetric tenon shaping (male and female) for locking systems
-
Supports Three-Spine Buckle joints
-
Ideal for mass production with precise fit and minimal error
-
Designed for high-speed assembly line workflows
QMX1225GM – General Use Model
-
Produces uniform straight tenons on both ends
-
Reliable and versatile for a wide range of woodworking applications
-
Suitable for standard cabinet door frames, furniture panels, etc.
Key Features:
-

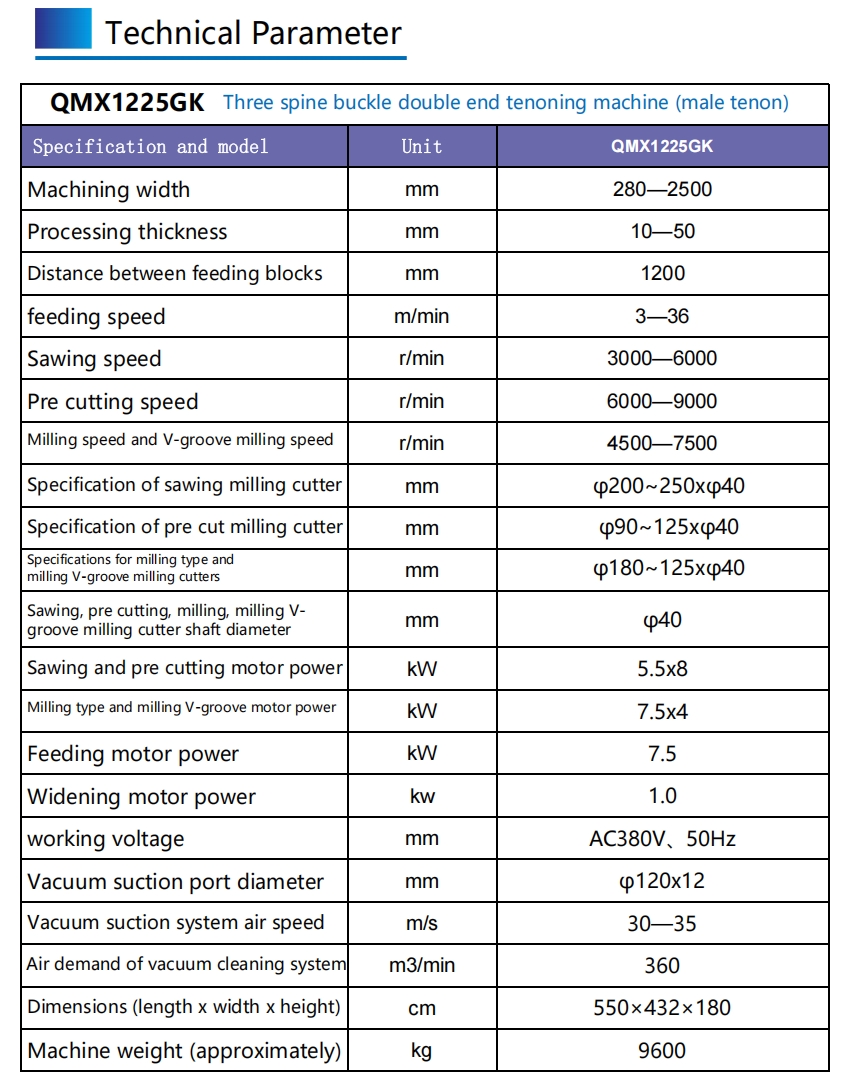

Working Range: Machining width 280–2500 mm, thickness 10–50 mm
-
High-Speed Processing: Feeding speed 3–36 m/min; sawing speed up to 6000 r/min; pre-cutting up to 9000 r/min
-
Powerful Drive: Equipped with multiple high-power motors – total motor output exceeds 60 kW
-
Advanced Milling: Supports adjustable milling and V-groove shaping for precision joints
-
Robust Build: Heavy-duty frame ensures long-term stability and accuracy
-
Vacuum Dust Control: Integrated system for efficient chip removal and clean operation
Applications:
-
Decorative wood thread and veneered particleboard
-
Solid wood flooring and artificial board lock furniture
-
Suitable for large-scale male slotting of panels in Three-Spine joint manufacturing
Technical Efficiency:
