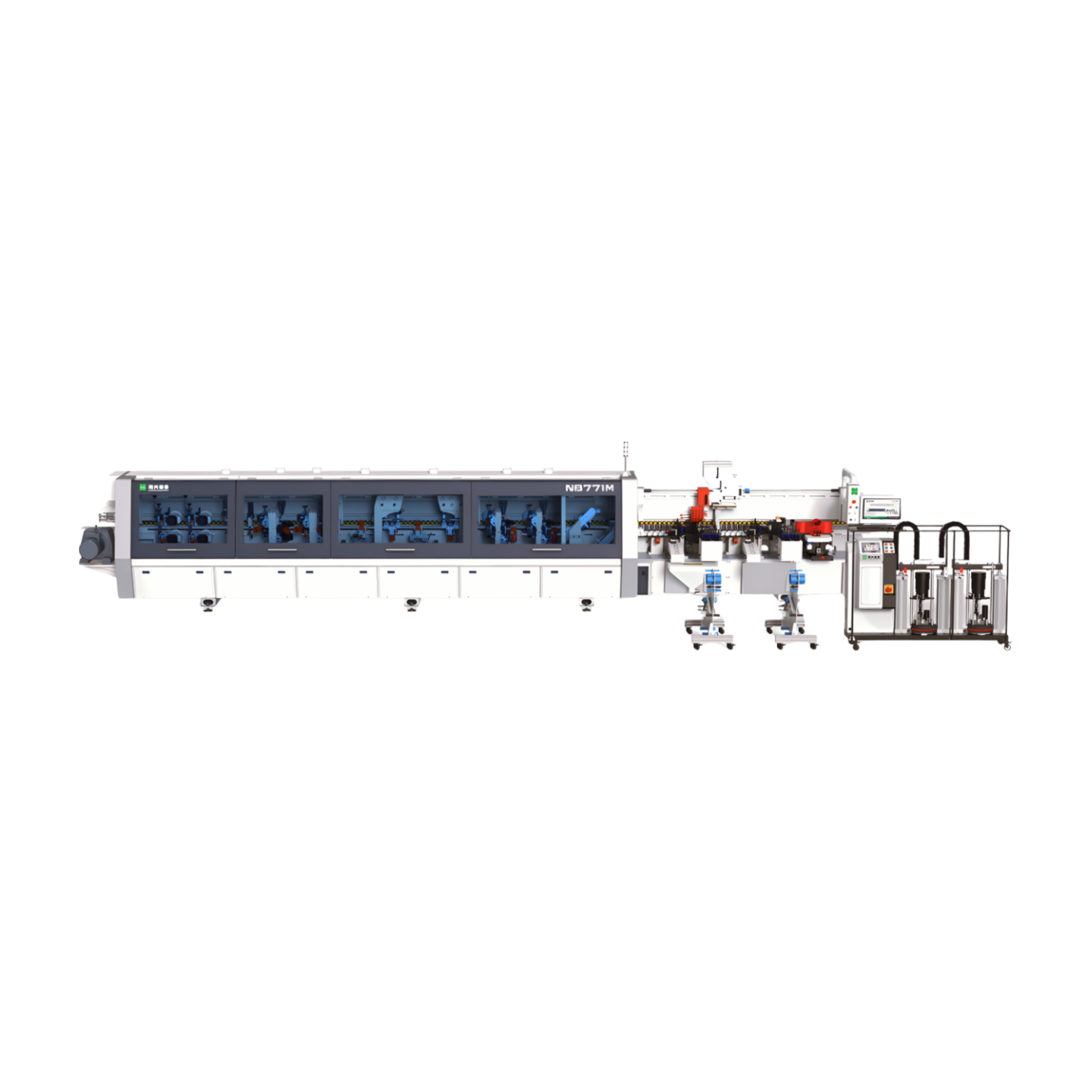

NB771M Edge Banding Machine with V-Belt and Double Gluing Units
The NB771M is a high-speed edge banding machine featuring dual gluing capability and a V-belt-driven top pressing system. Built for manufacturers who require both stability and flexibility in panel edge processing, this model supports precise and clean bonding with both PUR and EVA glue systems.
Key Features
-
Dual Gluing System (PUR + EVA)
Equipped with two-color, no-cleaning PUR glue pot and optional EVA system, allowing seamless switching for different production needs. -
Optimized Edge Banding Workflow

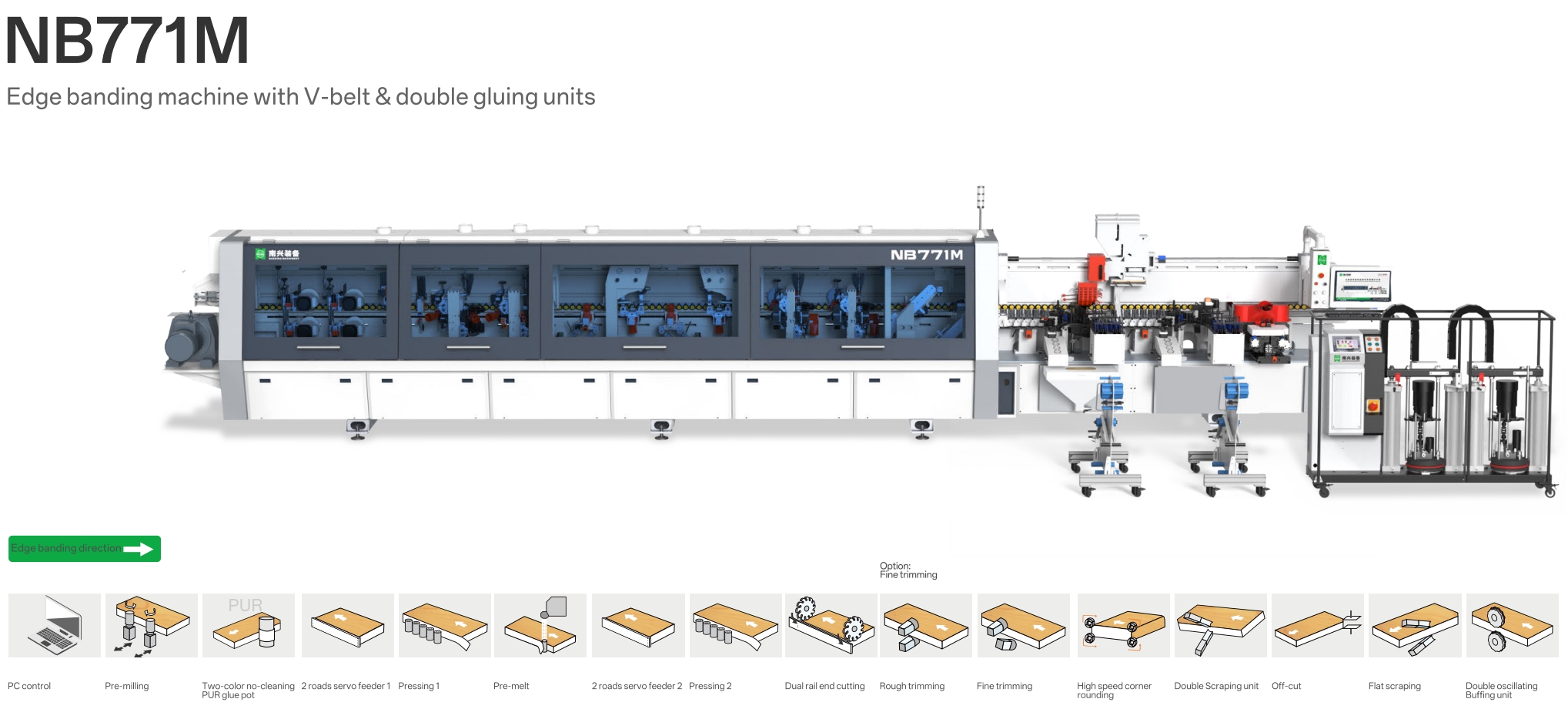

Includes pre-milling, dual servo tape feeders, dual pressing, pre-melting, dual rail end cutting, rough/fine trimming, corner rounding, scraping, off-cut, flat scraping, and double oscillating buffing for complete edge treatment. -
Stable Feeding System with V-Belt Top Pressure
Ensures consistent pressure across all panel types during high-speed movement, reducing slippage and improving bonding uniformity. -
Servo-controlled Tape Feeding Units
Two sets of independent servo feeders allow precise delivery of edge tapes, improving process control and material efficiency. -
Optional Fine Trimming Unit
Enhances edge finish quality with adjustable trimming based on material and application. -
Compact Footprint, Industrial-grade Build
Durable construction and modular design offer long service life and easy maintenance in high-throughput production environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NB771M |
| Workpiece Length | ≥100 mm |
| Workpiece Width | ≥40 mm |
| Workpiece Thickness | 9–60 mm |
| Edge Tape Thickness | 0.4–3 mm |
| Min. Workpiece Size | 100×40 mm (with support plate: 200×80 mm) |
| Feeding Speed | 24/28 m/min |
| Total Power | 36 kW |
| Net Weight | 5310 kg |
| Overall Dimension | 11200×1050×1850 mm |
Applications
The NB771M is ideal for flexible production lines that alternate between different materials, glue types, and customer preferences. Widely used in manufacturing of cabinets, wardrobe systems, kitchen furniture, and commercial panel products.
