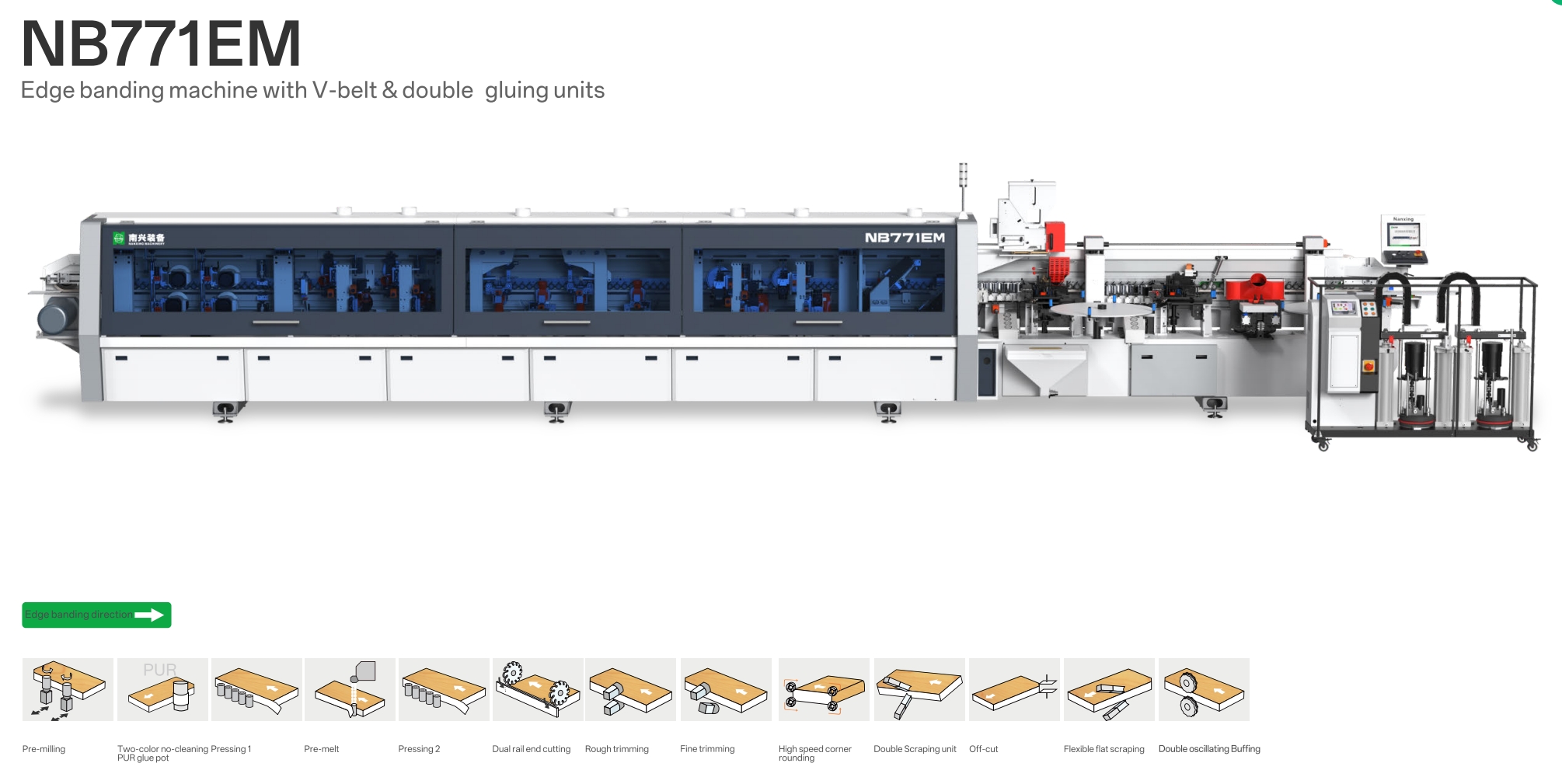

NB771EM Edge Banding Machine with V-Belt and Double Gluing Units
The NB771EM is a high-performance edge banding machine engineered for advanced production lines. It features dual gluing units, high-speed PUR application, and a modular structure optimized for precision, flexibility, and seamless finishing — all while maintaining production efficiency in demanding manufacturing environments.
Key Features
-
Two-color No-Cleaning PUR Glue Pot System
Efficiently switches between different glue types and colors, supporting high-gloss and moisture-resistant applications without downtime for cleaning. -
Comprehensive Edge Processing Workflow
Equipped with pre-milling, pre-melt station, dual pressing, servo-controlled dual rail end cutting, rough and fine trimming, high-speed corner rounding, dual horizontal scraping units, flexible flat scraping, off-cut removal, and dual buffing. -
High-Speed PUR Gluing with Pre-Melting
Delivers stable glue temperature and viscosity, ensuring consistent bonding across variable edge materials and workpiece sizes. -
Horizontal 2x Scraper & Flexible Scraping Module
Achieves clean, fine finishes across a range of edge shapes and materials, even with complex contours or soft-form surfaces. -
Modular V-Belt Top Pressure System
Ensures smooth and consistent material feeding at high speeds, significantly reducing vibration and improving panel alignment. -
User-Friendly Automation
Integrated touch-screen PC control with real-time diagnostics, temperature monitoring, glue consumption tracking, and alarm systems.

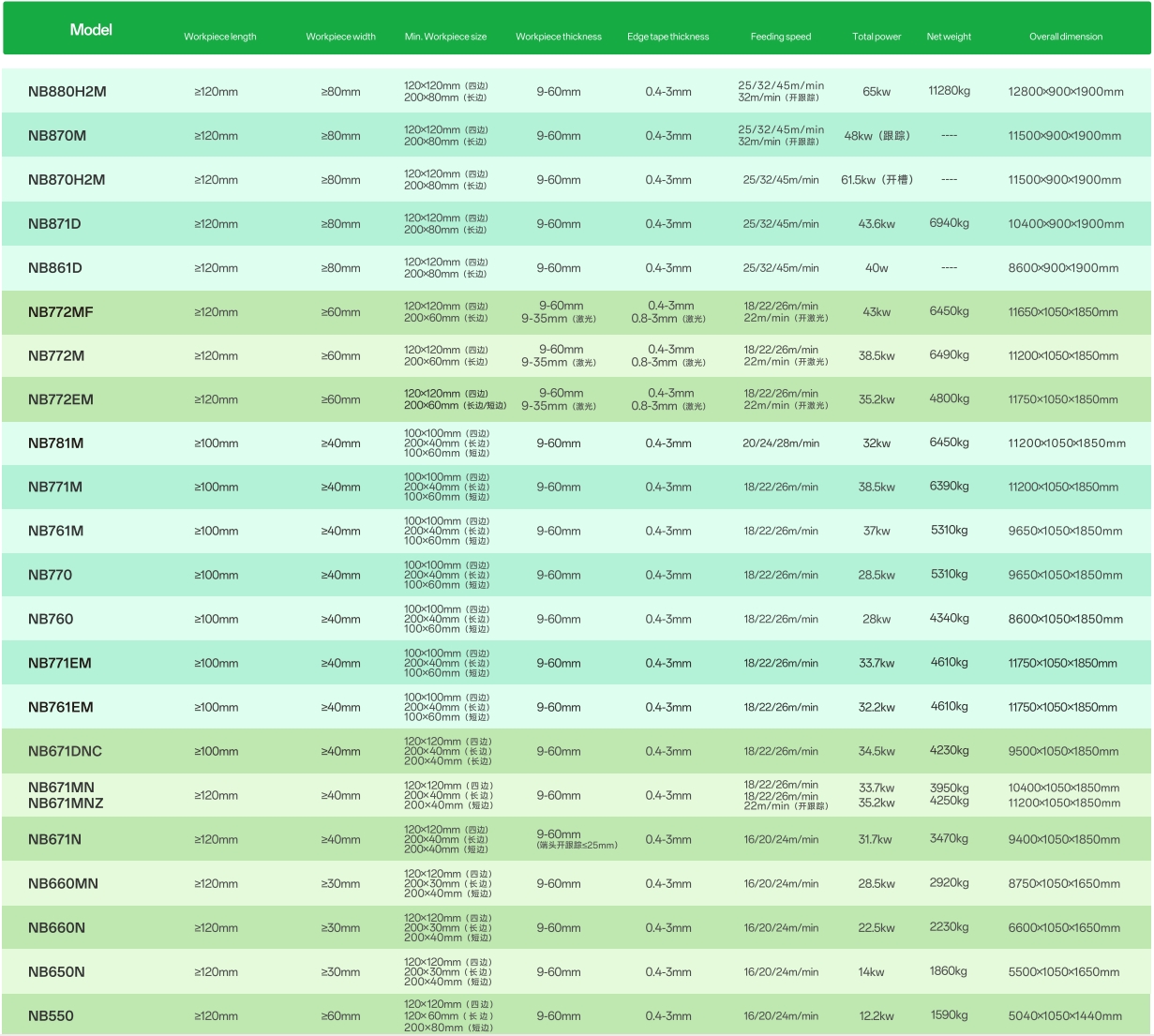

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NB771EM |
| Workpiece Length | ≥100 mm |
| Workpiece Width | ≥40 mm |
| Workpiece Thickness | 9–60 mm |
| Edge Tape Thickness | 0.4–3 mm |
| Min. Workpiece Size | 100×40 mm (with support plate: 200×80 mm) |
| Feeding Speed | 18/22/26 m/min |
| Total Power | 33.7 kW |
| Net Weight | 4610 kg |
| Overall Dimension | 11750×1050×1850 mm |
Applications
The NB771EM is the preferred solution for factories specializing in high-end panel furniture, where quality, precision, and versatility are non-negotiable. Ideal for use in kitchen cabinets, office furniture, bathroom vanities, and custom interior components.
