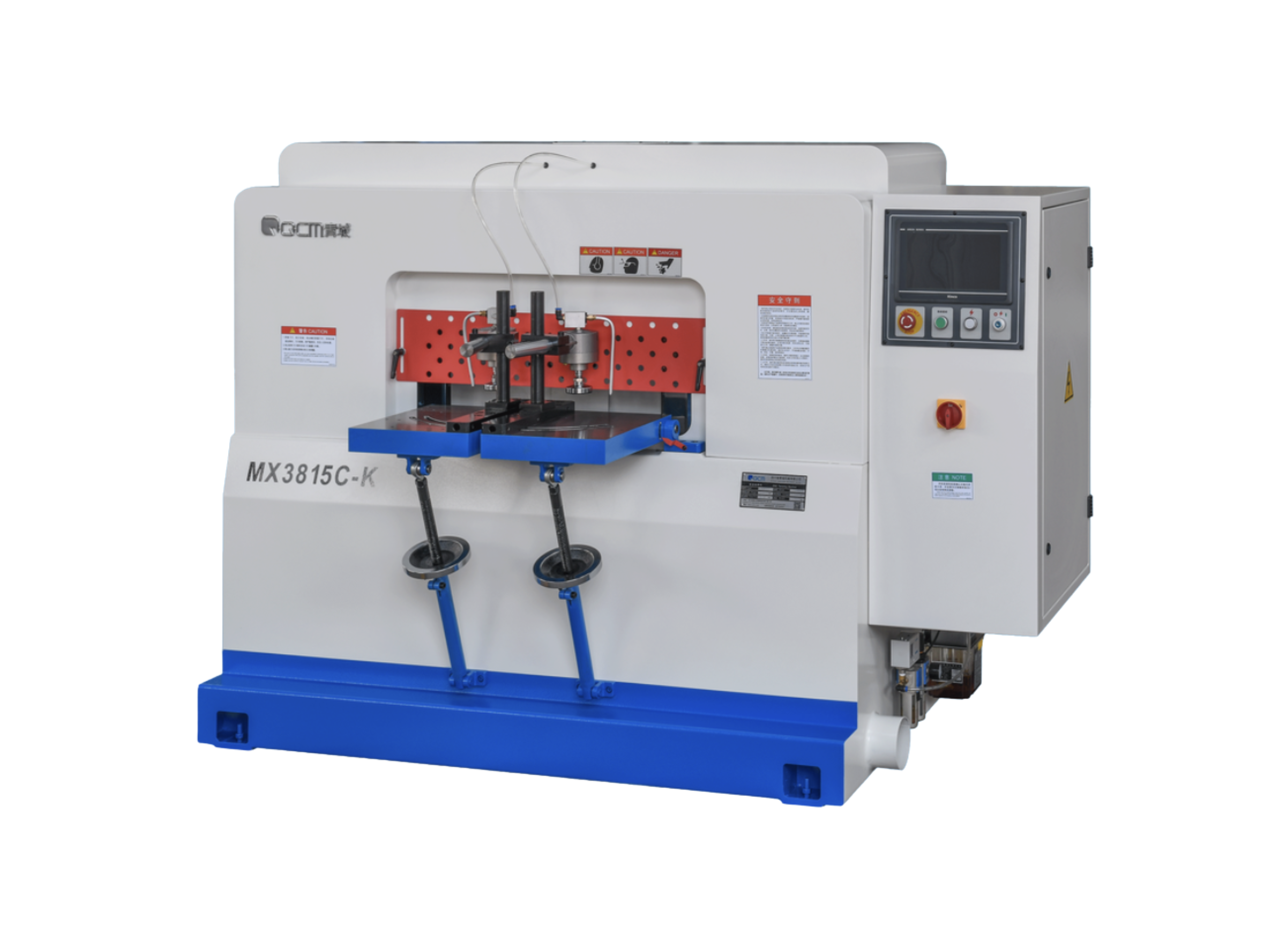

MX3815C-K CNC Tenoning Machine
Product Overview
The MX3815C-K CNC Tenoning Machine is a high-precision CNC-controlled woodworking tenoner designed for accurate mortise-and-tenon joint processing. It integrates digital control, adjustable spindle angles, and an advanced servo drive system, ensuring consistent performance for furniture, doors, and solid wood components. The machine supports both horizontal and vertical tenon processing, making it highly versatile for mass production lines.
Key Features
-
CNC Control System:
Utilizes advanced servo control for X and Y axes to ensure high precision and smooth motion. -
Dual Position Processing:
Capable of machining both horizontal and vertical tenons with programmable depth and angle. -
High Spindle Speed:
Equipped with an 8,500 rpm spindle for fine surface finishing and efficient cutting. -
Tilting Worktable:
The 20° adjustable worktable allows complex angle tenons to be machined with ease. -
Compact Design:
Ergonomically designed structure minimizes vibration and ensures operational stability. -
Suitable for Multiple Tenon Types:
Ideal for round, rectangular, or slanted tenon production in wood furniture and joinery.
| No. | Specification | Unit | MX3815C-K |
|---|---|---|---|
| 1 | Max. Tenon Width (Horizontal) | mm | 140 |
| 2 | Max. Tenon Thickness (Horizontal) | mm | 80 |
| 3 | Max. Tenon Width (Vertical) | mm | 80 |
| 4 | Max. Tenon Thickness (Vertical) | mm | 80 |
| 5 | Max. Round Tenon Diameter | mm | Φ80 |
| 6 | Max. Tenon Depth | mm | 70 |
| 7 | Cutter Shaft Diameter | mm | Φ30 |
| 8 | Spindle Speed | r/min | 8500 |
| 9 | Main Motor Power | kW | 3.0 |
| 10 | X-axis Motor Power | kW | 1.0 |
| 11 | Y-axis Motor Power | kW | 1.0 |
| 12 | Worktable Tilt | ° | 20 |
| 13 | Air Pressure | MPa | 0.6 |
| 14 | Machine Dimensions (L×W×H) | cm | 215 × 130 × 178 |
| 15 | Machine Weight | kg | 1000 |
