QMJ154D Automatic Single-Blade Rip Saw (Standard Model)

QMJ154F Automatic Single-Blade Rip Saw (Variable Frequency Feeding)

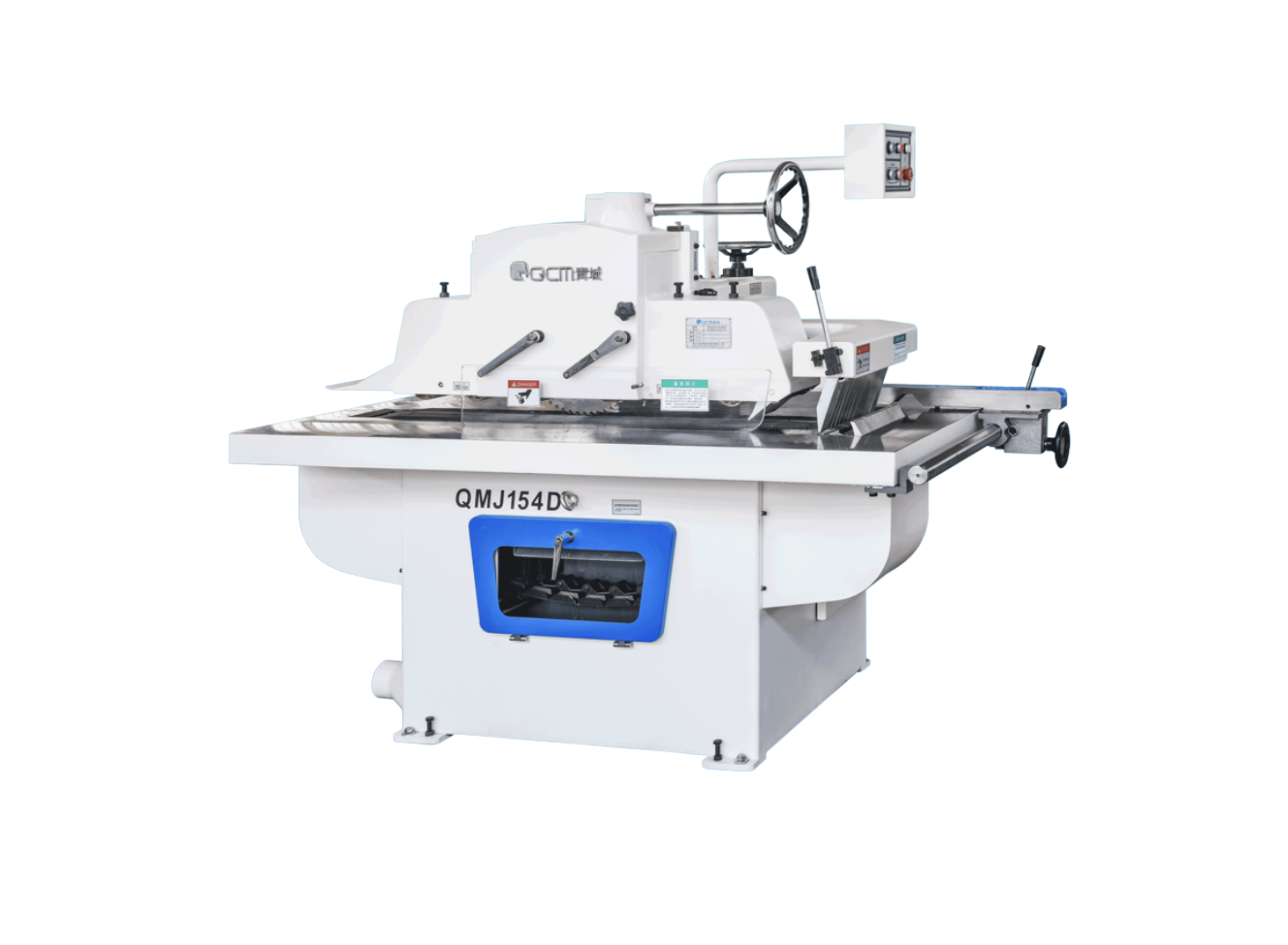

QMJ154D / QMJ154F Automatic Single Blade Rip Saw

Product Overview

The QMJ154 Series is a heavy-duty automatic single blade rip saw designed for high-efficiency cutting of thick solid wood panels.
Built with a robust steel frame and precision feed system, it ensures stable operation, accurate cutting, and long-term reliability.
The series includes two models — QMJ154D (Standard) and QMJ154F (Variable Feed Speed) — to meet different production requirements.
It is ideal for large-scale woodworking factories producing doors, panels, and furniture components.

Key Features

• High Cutting Capacity – Supports a maximum cutting thickness of 125 mm, suitable for heavy and thick solid wood.

• Powerful Motor System – Equipped with an 11 kW main motor and 12.5 kW total power output, ensuring smooth and strong cutting performance.

• Variable Feed Speed (QMJ154F) – Frequency-controlled feeding allows adjustable speed from 5–24 m/min, providing flexibility for different materials and precision needs.

• Durable Construction – Reinforced machine body and precision shaft (Φ30 mm) ensure stability under continuous operation.

• Wide Blade Compatibility – Supports saw blades of Φ300–400 mm, offering versatility for different cutting depths.

• Large Working Table – Table size 1700×940 mm provides ample support for long and wide panels.

• Efficient Dust Extraction – Dual Φ100 mm suction ports for cleaner operation and safer working conditions.
