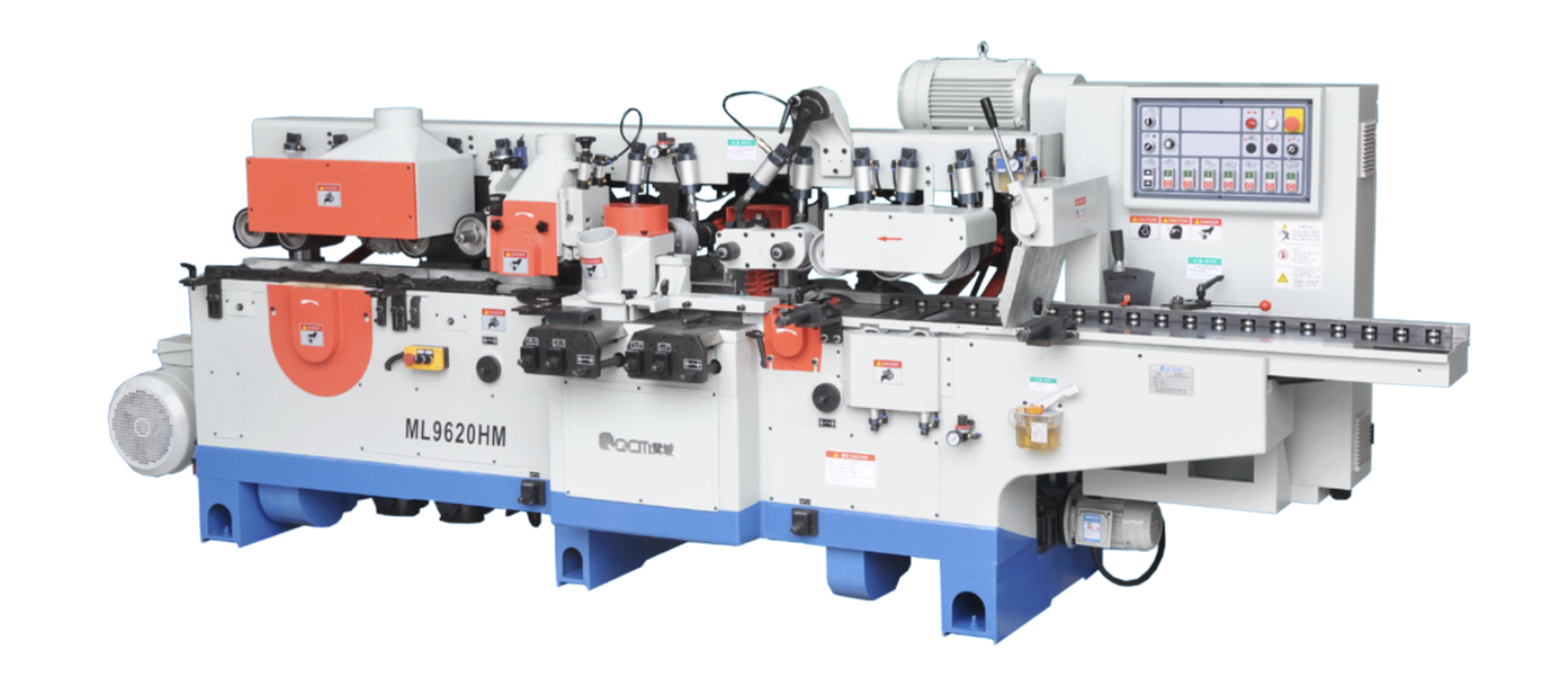

ML9620HM Planer And Saw Combination Machine (top and bottom saw)

(Upgraded High-Type with Top & Bottom Saw)

Product Overview

The ML9620HM is a high-performance six-spindle double-sided planer and moulder designed for large-scale solid wood processing.
It integrates planing, trimming, and sawing functions in one unit, offering superior efficiency and precision for heavy-duty timber machining.
With top and bottom saw spindles, multiple planing cutters, and adjustable feeding speeds, it ensures smooth surface finish, accurate dimensions, and high output for industrial furniture and flooring production.

Key Features

• Multi-Function Integration – Combines planing, trimming, and top/bottom sawing operations in one pass.

• Powerful Spindle System – Six spindles (front, bottom, left, right, top, and bottom saw) with total power up to 94.49 kW.

• High Cutting Speed – Main planing spindle runs at 6800 r/min and saw spindle at 4500 r/min for fine surface quality.

• Large Working Range – Handles 20–200 mm width and 10–200 mm thickness, suitable for large timber sections.

• Precision Feed Control – Adjustable feed speed from 5–25 m/min to meet different material requirements.

• Automatic Lifting Mechanism – Includes lifting motors for top/bottom saws and feeding beam, ensuring convenient setup and stable operation.

• Robust Structure – Heavy cast-iron frame minimizes vibration, improving durability and machining accuracy.

• Advanced Dust Collection System – Equipped with multiple suction outlets (Φ150×2, Φ120×4) for efficient chip removal.

• Touch-Screen Control Panel – Simplifies operation and allows precise spindle and feed adjustments.
