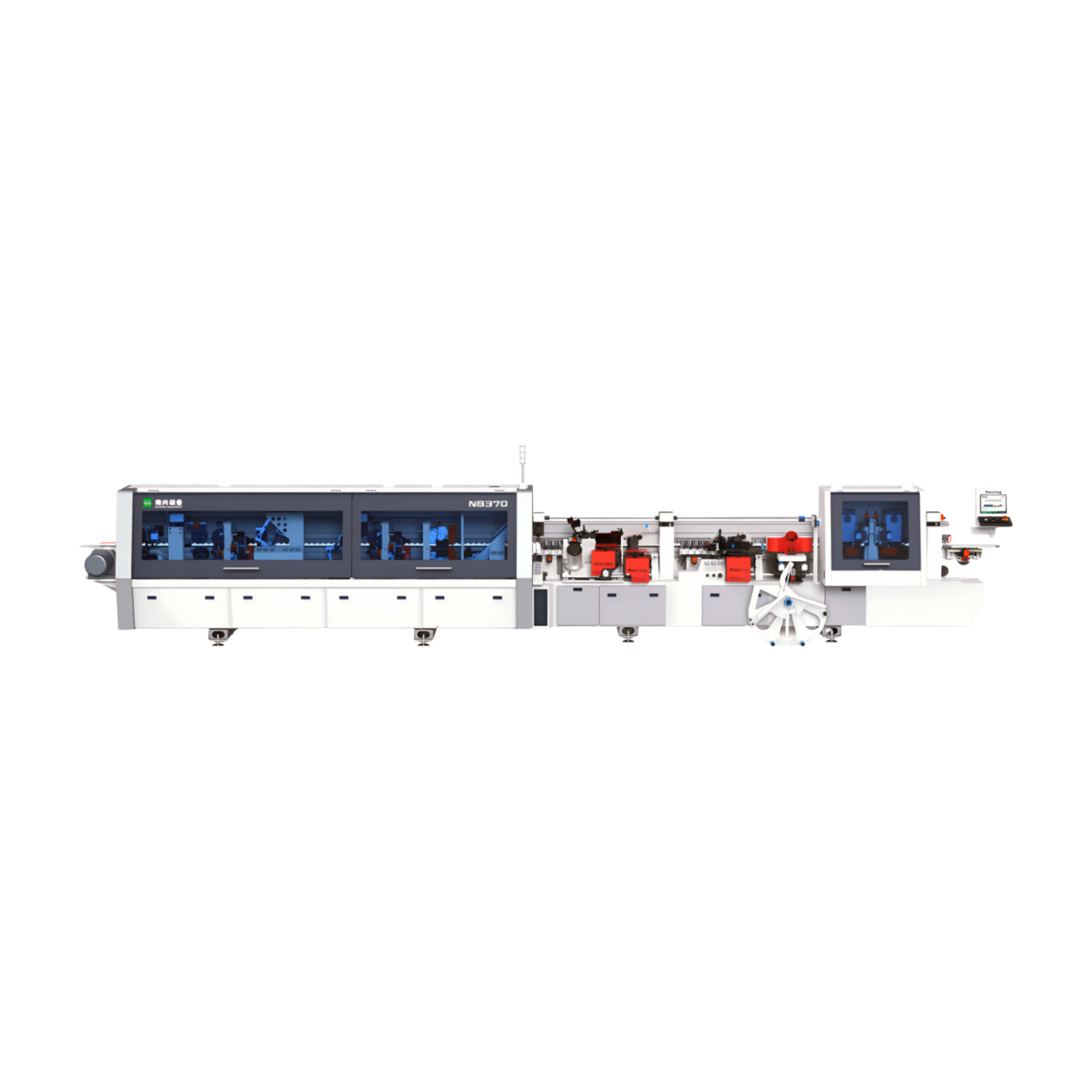

NB370 Intelligent Edge Banding Machine for Inclined Edges
The NB370 is a precision edge banding machine designed specifically for processing inclined and beveled edges. With support for full 45° bevel edge banding and straight edge processing, this machine delivers outstanding flexibility and finishing quality for contemporary panel furniture manufacturing. It is ideal for high-end furniture and interior applications requiring non-traditional edge profiles.
Key Features
-
Inclined Edge Specialization
Capable of full 45° bevel edge banding for 18mm and 25mm thick panels, offering advanced design flexibility. -
Dual Processing Capability
Supports both straight edge (9–50mm thickness) and inclined edge (15–25mm thickness) banding in one system. -
Multi-Stage Processing Units
Includes inclined edge pre-milling, dual glue pots, pressing (both straight and inclined), end cutting, trimming, corner rounding, scraping, and buffing. -
Edge Tape Grooving Function
Equipped with edge tape grooving before cutting for precise tape positioning and aesthetic finish. -
Stable and Accurate Feeding System
Delivers smooth transport of both flat and beveled panels with consistent positioning throughout the process. -
User-Friendly Touch Control Panel
Simplifies operation, mode switching, and real-time monitoring of machine status.

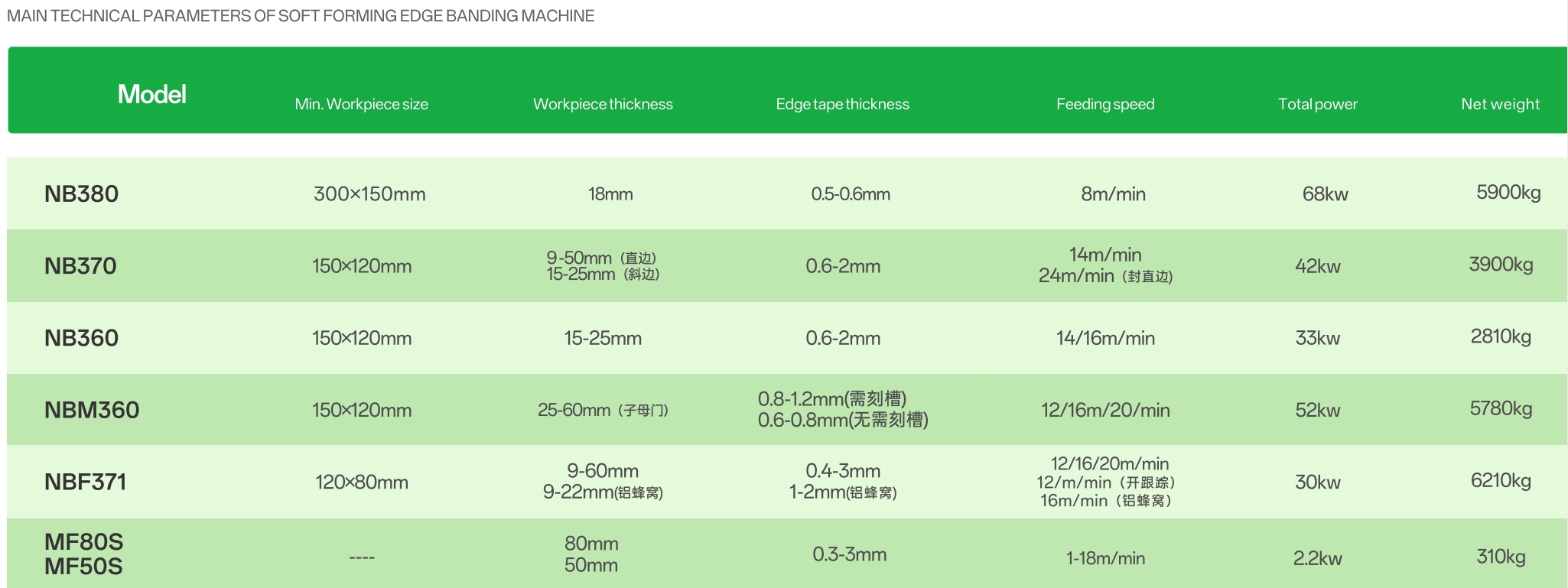

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NB370 |
| Min. Workpiece Size | 150×120 mm |
| Workpiece Thickness | 9–50 mm (straight) / 15–25 mm (inclined) |
| Edge Tape Thickness | 0.6–2 mm |
| Feeding Speed | 14 m/min (straight) / 24 m/min (inclined) |
| Total Power | 42 kW |
| Net Weight | 3900 kg |
Applications
Perfect for edge banding on 45° bevel doors, chamfered furniture parts, and modern cabinet fronts. Widely used in mid- to high-end panel furniture manufacturing and decorative interior projects, particularly where diagonal or compound angles are part of the design aesthetic.
